Description
Professional, high-precision sensors for monitoring flow rates. Available in different models covering flow ranges from 0.07 µL/min to 40,000 µL/min. IP54-rated(1) are water resistant to withstand certain environments. Compatible with OB1 MK4 microfluidic controller from Elveflow. Contact us for help!
(1) IP54 code definition:
First digit 5: Dust protected – Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the safe operation of the equipment.
Second digit 4: Splashing of water – Water splashing against the enclosure from any direction shall have no harmful effect, utilizing either: a) an oscillating fixture, or b) A spray nozzle with no shield. Test a) is conducted for 10 minutes. b) is conducted (without shield) for 5 minutes minimum.

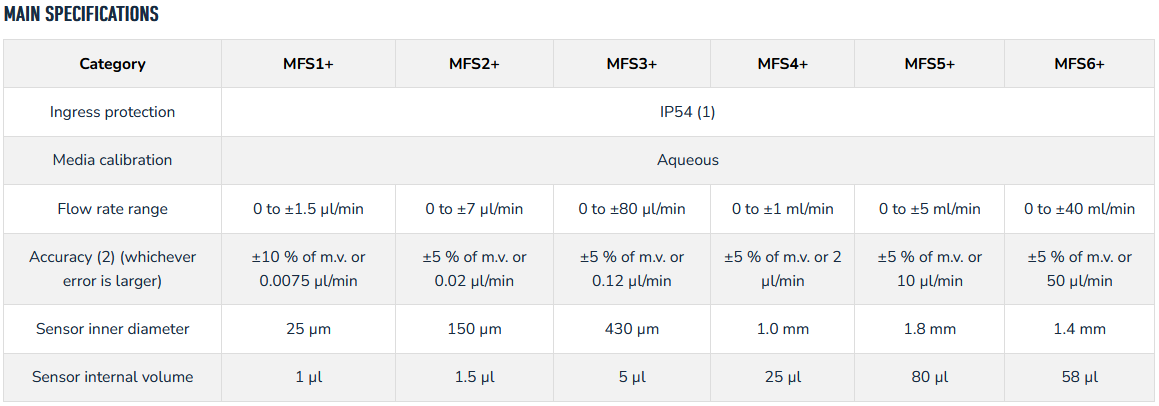

(2) Accuracy and repeatability specifications valid for flow rates below full scale (for MFS1 to MFS5) and below ±20 ml/min for MFS6.
Additional specifications can be found here.
